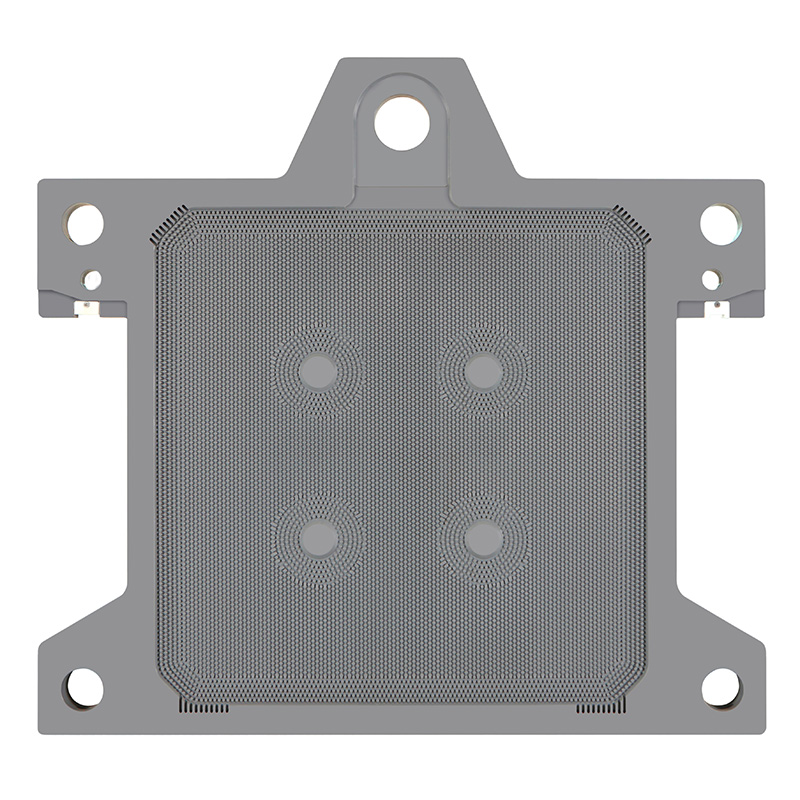

Material of JINGJIN plate consists of TPE elastomer, fiber glass, and Polypropylene. So our plates have the advantage of flexibility, toughness, rigidity.
1. Material of JINGJIN plate consists of TPE elastomer, fiber glass, and Polypropylene. So our plates have the advantage of flexibility, toughness, rigidity. After the process of the CNC machining center, the flatness of the filter plate is lower than 25µm which make sure excellent sealing when pressing, and without any leakage when feeding.
2. All specifications of our plates not only comply with China JB/T4333.3-2005 standard, but also comply with Germany DIN7129 standard, completely in common with the European&Amerian products.
3. Compared with the filtration plates that manufactured according to national standards: the filtration speed improved 20%, density and intensity, anti-fatigue, anti-aging speed improved one times, which make its lifetime more than 10 years.
4. The maximum feeding pressure of the filter plate is 1.6Mpa. With the properties of high temperature and high pressure resistance, antisepsis and airtight, short filtering cycle, good processing effect and low humidity of the cake etc.
